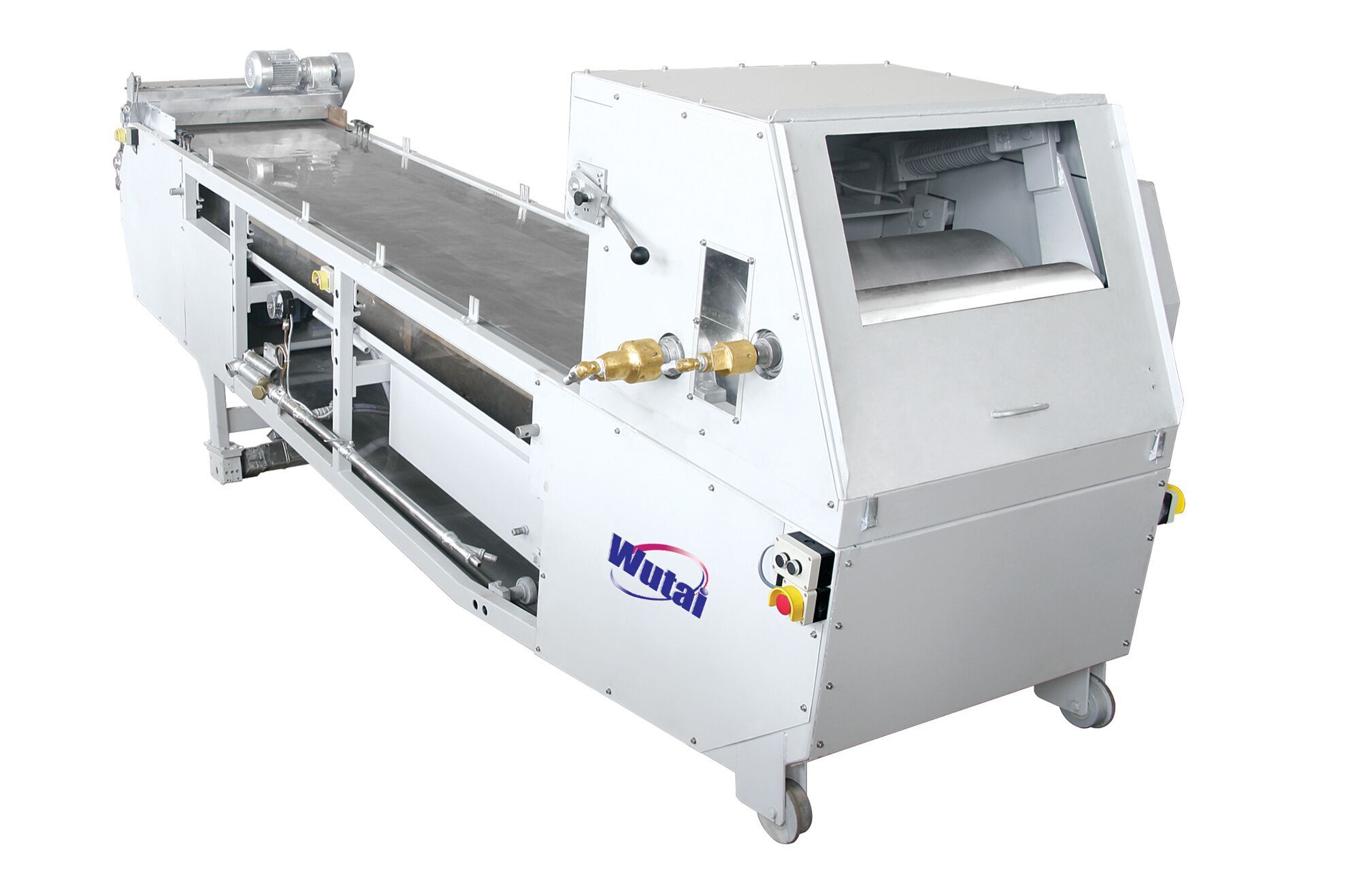

江苏YPG系列不锈钢带水冷压片机

  • 产品名称: 江苏YPG系列不锈钢带水冷压片机
  • 产品分类: 水冷钢带压片机
  • 公司名称: 烟台吴太化工设备有限公司
  • 型号规格:
  • 产品用途:
  • 产品价格: 0.0
  • 添加时间: 2016-06-20
  • 分    享:
  • 二 维 码:

    手机购

    更方便

产品详情
询盘


YPG系列不锈钢带水冷压片机由压辊,不锈钢带,破碎辊和行走系统组成,从挤出机挤出的热熔状态的物料被压辊压成1-1.5mm厚的片状,然后片状物料在输送过程中用冷水喷淋到不锈钢带背面,持续将物料冷却到固态,破碎成片状物料落入料斗,注意:冷却水温度应≤14℃

主要特点:

*采用高质量进口钢带
*用纯净水冷却,避免污染。
*高产量
*易于清机和维修
*压片厚度可调,传送速度可调
*具有安全保护措施及紧急状态处理措施


YPG series stainless steel water cooling band

This series cooling belt  is composed of cooling rolls, stainless steel band conveyor, crusher and driving system. The discharged material from extruder is sheeted at thickness of 1-1.5mm by rollers .The sheeted material is transported to the crusher while being continually cooled by water which is sprayed to the underside surface of the stainless steel band. Then crushed chip material falls down to the hopper. Attention: Temperature of cooling water should be ≤14℃

Features:
* High quality imported stainless steel band
* Material cooled by clean chilled water to avoid pollution.
* High output capacity
* Easy for cleaning and maintenance
* Adjustable thickness of chips and speed of conveyor
*Safety protection device and emergency situation protection device

型号及规格specification


型号Model

压辊直径Roll dia(mm)

带宽Width(mm)

带长Length(mm)

产量Output(kg/h)

电机功率Motor power(kw)

外形尺寸Dimension(m)

YPG-406

295

600

4000

100-200

1.5

4.6*1.1*1.6

YPG-508

295

800

5000

300-400

2.2

5.5*1.2*1.6

YPG-510

295

1000

5000

400-600

2.2

5.7*1.5*1.7

YPG-610

350

1000

6000

600-800

3.0

6.7*1.6*1.8

YPG-712

350

1200

7000

800-1000

3.0

8.0*1.7*2.0


以上是关于江苏YPG系列不锈钢带水冷压片机厂家,江苏YPG系列不锈钢带水冷压片机价格,江苏YPG系列不锈钢带水冷压片机哪家好,江苏YPG系列不锈钢带水冷压片机加工的详细介绍
